| 구분 | E04 | |||||
|---|---|---|---|---|---|---|
| 1200 | 1500 | 1800 | 2100 | 2400 | ||
| 규격 (mm) |
W(폭) | 1200 | 1500 | 1800 | 2100 | 2400 |
| D(깊이) | 800 | |||||
| H(높이) | 2350 | |||||
| External | Phenolic laminate 4mm & Aluminum extrusion moulding | |||||
| Interior | Phenolic laminate 4mm | |||||
| Work top | Phenolic laminate 20mm | |||||
| Door | 상/하 Sliding door type | |||||
| Door Sash | Aluminum extrusion moulding | |||||
| Glass | Tempered safety glass 5mm | |||||
| Cabinet | 60x40x1.4mm, Square pipe, Epoxy powder coated | |||||
| Cabinet Door | P.B LPM 15mm | |||||
| SUS resin & drain | 1EA | |||||
| Concent | 110V x 1EA/220V x 1EA | |||||
| Lamp | LED Lamp 20W X 1EA | |||||

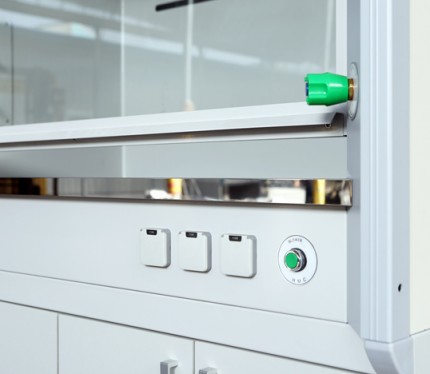

| Lamp & Blower switch | Selector Type | |||||

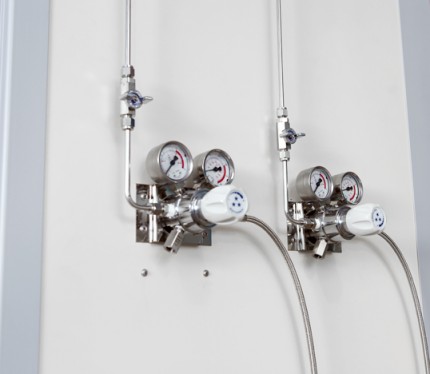

| Gas | 3EA | |||||
| Water | 1EA | |||||
| Duct outlet | 200 / 250 / 300ø | |||||
| Blower | Option <실내형 / 실외형> | |||||
| Option | Support frame / Air velocity monitor / Auto damper / Safety glass film | |||||
